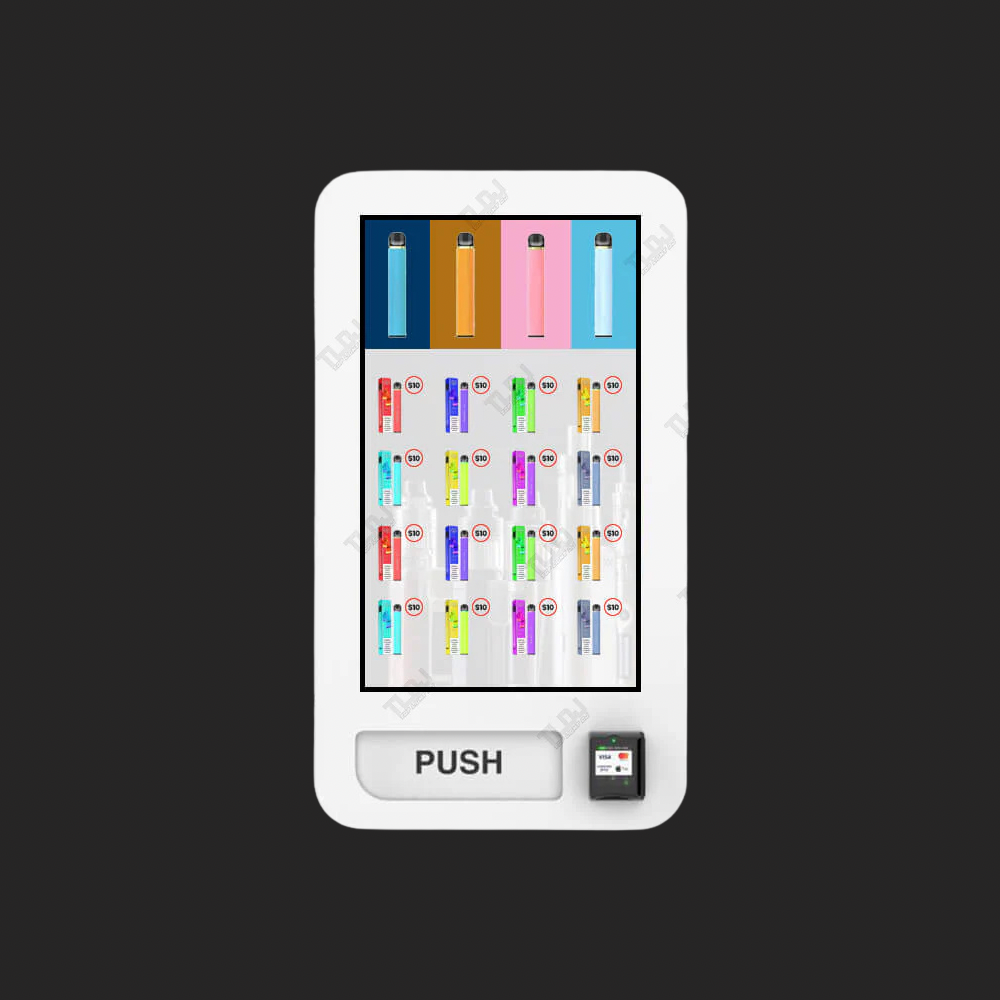

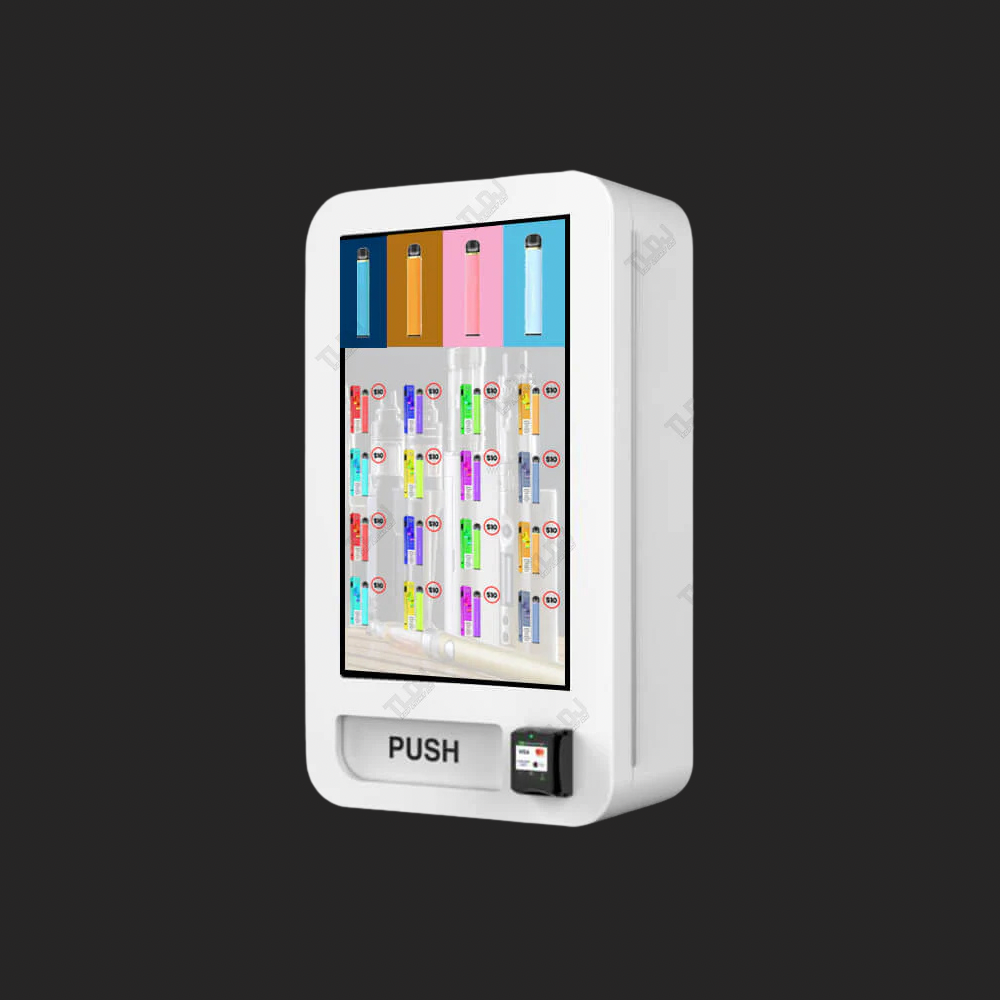

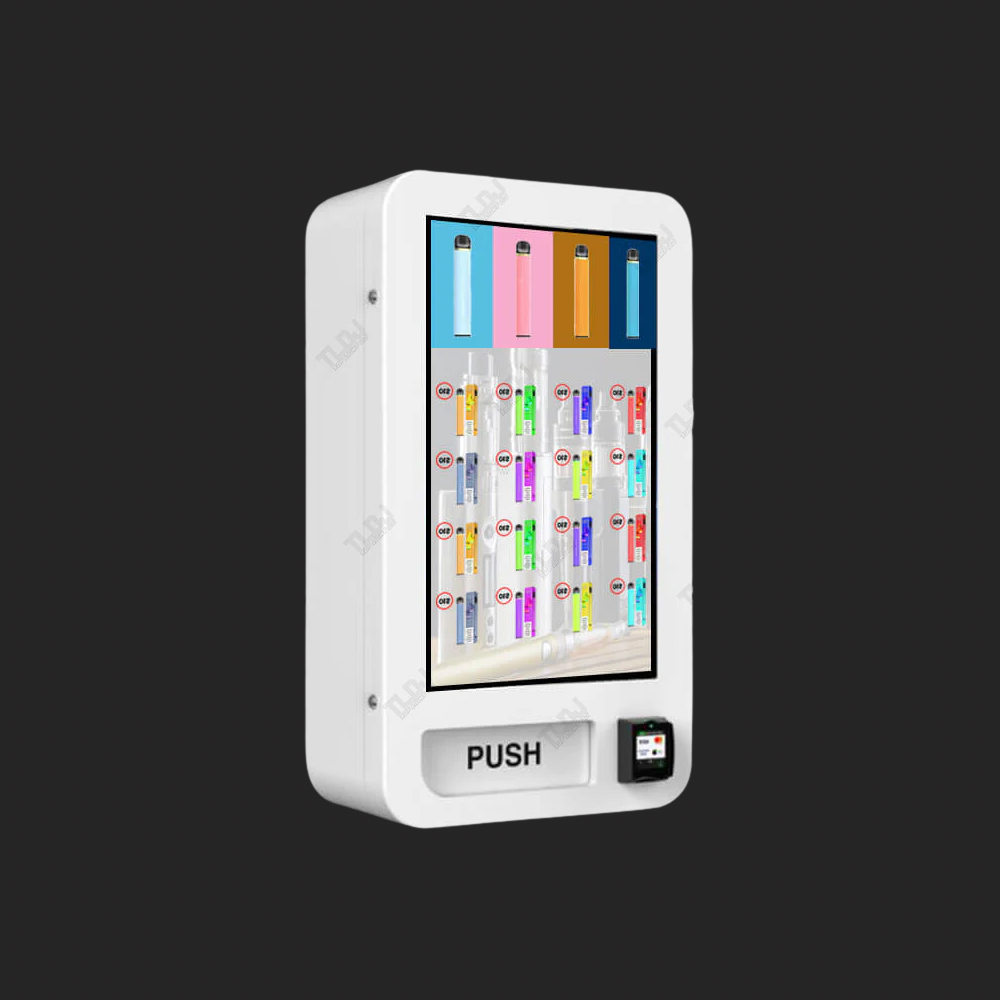

Touch Screen Vending Machine

Touch screen vending machine is an automated machine that provides items such as condom, snacks, cigarettes, and tissue, etc. to consumers after money, a credit card, or a bill is inserted into the machine.

FEATURES

1. Select items on the touch screen.
2. 32-inch advertising display.
3. Wall-mounted and desktop design.
4. Small vending machines, big choices.
5. Up-to-date payment options & Change function

INTERNAL INDICATOR

1. Eye light: Detect the goods dropping, warning the abnormal condition of dropping and refund.
2. Adaptor: Power supplying to Mainboard High voltage board: Power supplying to the main board of screen
3. Power switch
4. Mainboard: Controlling the main board of vending machine.
5. GPRS module: Receiving the signal, IMEI code on the module is used for registering the backend management system.
6. Mainboard of the screen: A. Standalone version main board: Insert the U disk to display the video and pictures B.Android main board: Insert the U disk to display the video and pictures or install the ads broadcasting software


SPECIFICATIONS

• Brand: Hausofdj
• Color: White/Black
• Dimensions: 23.6” (L) × 10.6” (W) × 39.4” (H)
• Weight: 132 lbs (60 kg)
• Selections: 10 SKUs
• Selection Pricing: $0 – $99.95 per item
• Capacity: 100 – 300 units (varies)
• Lighting: LED lighting around the window
• Material: Painted metal sheet
• Audio: Built-in speaker
• Voltage Supply: AV220/50Hz
• Power Consumption: DC 12V, Max 65W
• Network: WiFi, 2G, 4G
• Payment Options: Coin, cash, credit card reader, and change dispenser
• Display: 43” touchscreen
• Device Control: PC, mobile
• Delivery System: Electronic drop sensor
• Data Sync: Real-time background synchronization
• Reset Function: Activate reset button
• Operating System: Android OS
• Software: Reyeah Vending System
